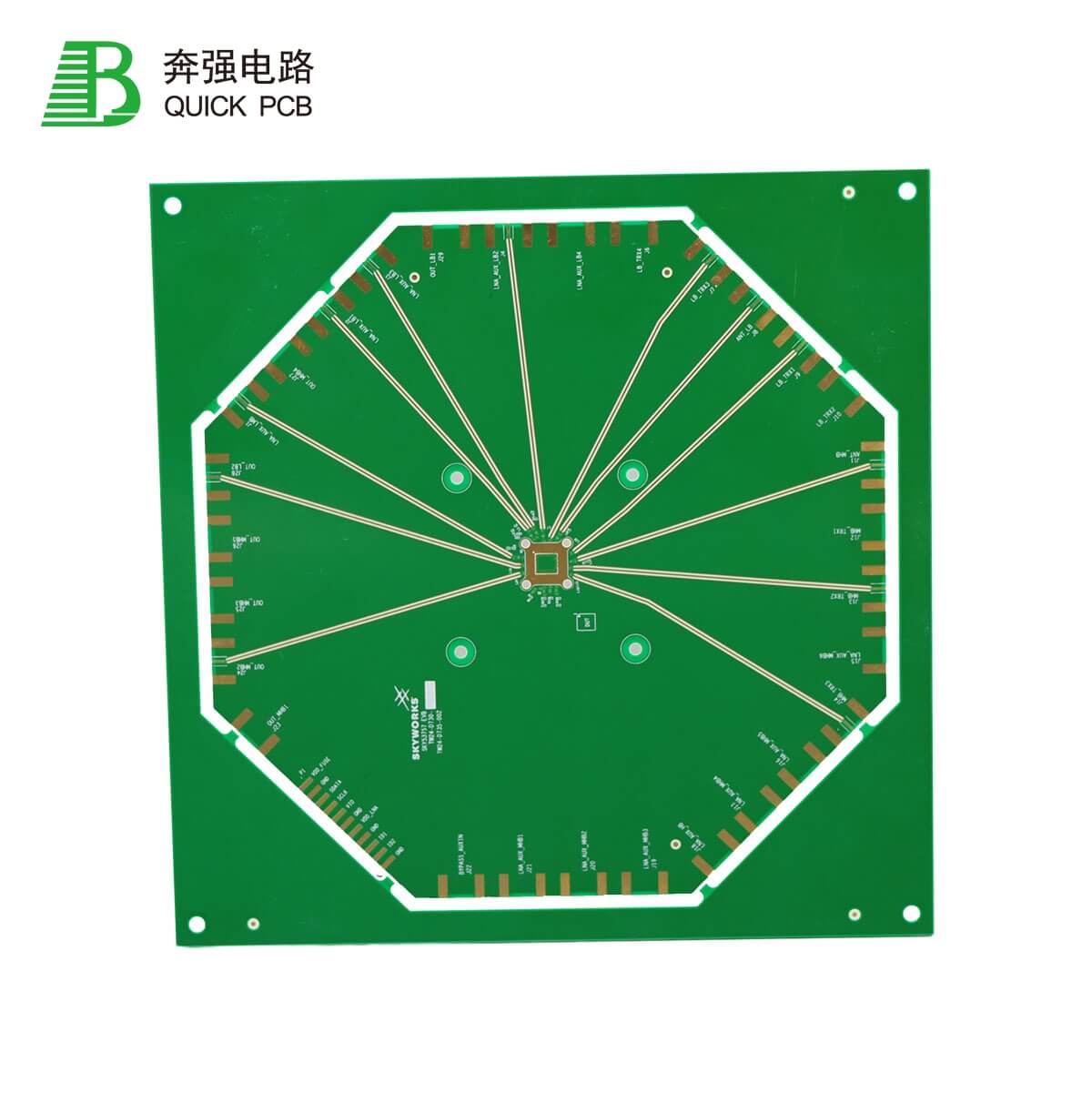

Discover bqpwb’s RF antenna PCB, engineered for superior performance in radio frequency applications. Our PCBs are designed to enhance signal quality and reliability, offering optimal solutions for RF and antenna technologies.
Optical Communication Module Material: S1000-2M 8 layers 2-step HDI 2+N+2 HDI Surface Finish: ENIG + Gold finger
Product Details
Application Characteristic Material Layer Communication High speed+high TG material IT968TC+Shengyi S1000-2M 10L Thickness Min hole diameter Min width/space Internal Number 1.00.1mm Laser hole: 0.10mm, Mechanical hole 0.15mm 100/100um S221021G10 Surface f
Automotive Radar Material: RO4835 + FR-4 mixed pressure Mechanical blind holes Impedance tolerance: +/-3
5G Communication RF Material: RO4003C 14 layers 4-step HDI 4+N+4 HDI Thickness: 2.8 mm Minimum hole size: 0.2 mm Hole-to-line distance: 0.165 mm Minimum line width/spacing: 0.12/0.1 mm Surface Finish: ENIG
Fixture Test Board Material: R-5785 Impedance tolerance: +/-5% 10 layers 2-step HDI 2+N+2 HDI Gold plating + Gold finger 30u + Back drill
5G Millimeter Wave Signal Amplifier Material: Rogers 4003C
KU Band DCSS High Frequency Header Circuit Area Material: Rogers TMM-3 High frequency pure pressure Thickness of board: 3.3 mm
RF Test Material: RO4350B 6 layers 1-step HDI 1+N+1 HDI Minimum line width/spacing: 0.1/0.09 mm
Application: 400G Optical Module Test Board Product Features: Gold fingers Material: S1000-2M Layers: 6 Board Thickness: 2.4 mm Minimum Hole Size: 0.3 mm Minimum Line Width/Spacing: 5/6 mil Surface Finish: ENIG + Gold fingers
Data Circuit Switching Equipment TU872SLK pure pressure 22 layers Aspect ratio: 12:1 Back drill
High Frequency Speed Circuit Boards Material: RO4350B + TU872 SLK mixed pressure 3-step HDI mechanical blind holes 3+4+3 HDI Thickness of board: 2.0 mm Aperture: 0.2 mm Aspect ratio: 10:1
